5-Stage Water Pump Pressure Rain Tank Garden Farm House Irrigation 2000W Controller 6000L/H 50m Lift

5-Stage Water Pump Pressure Rain Tank Garden Farm House Irrigation 2000W Controller 6000L/H 50m Lift

When low water pressure gets you down, power it up with our Giantz 5 stage water pump. It is the perfect solution where constant on-demand water pressure is needed at the open and close of any tap.

This 5 stage water pump is particularly useful for homes, household gardens, farms, or any situation where pressurised water is consistently required. Browse more garden and irrigation pumps if you want to compare options.

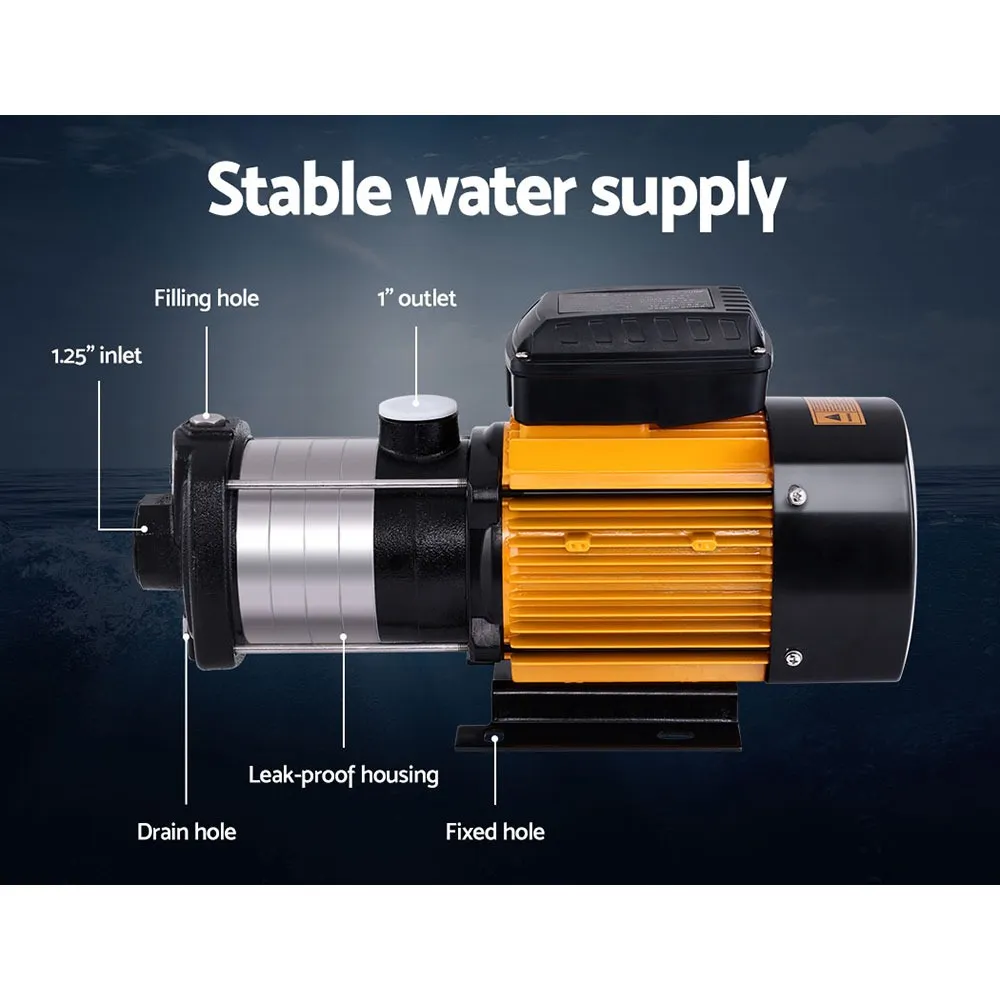

The 5 stage water pump features an IP-rated motor, full stainless steel pump body, cast iron ends, 1.25” inlet and 1” outlet ports, corrosion-resistant brass connectors, an efficient cooling system and built-in thermal protection.

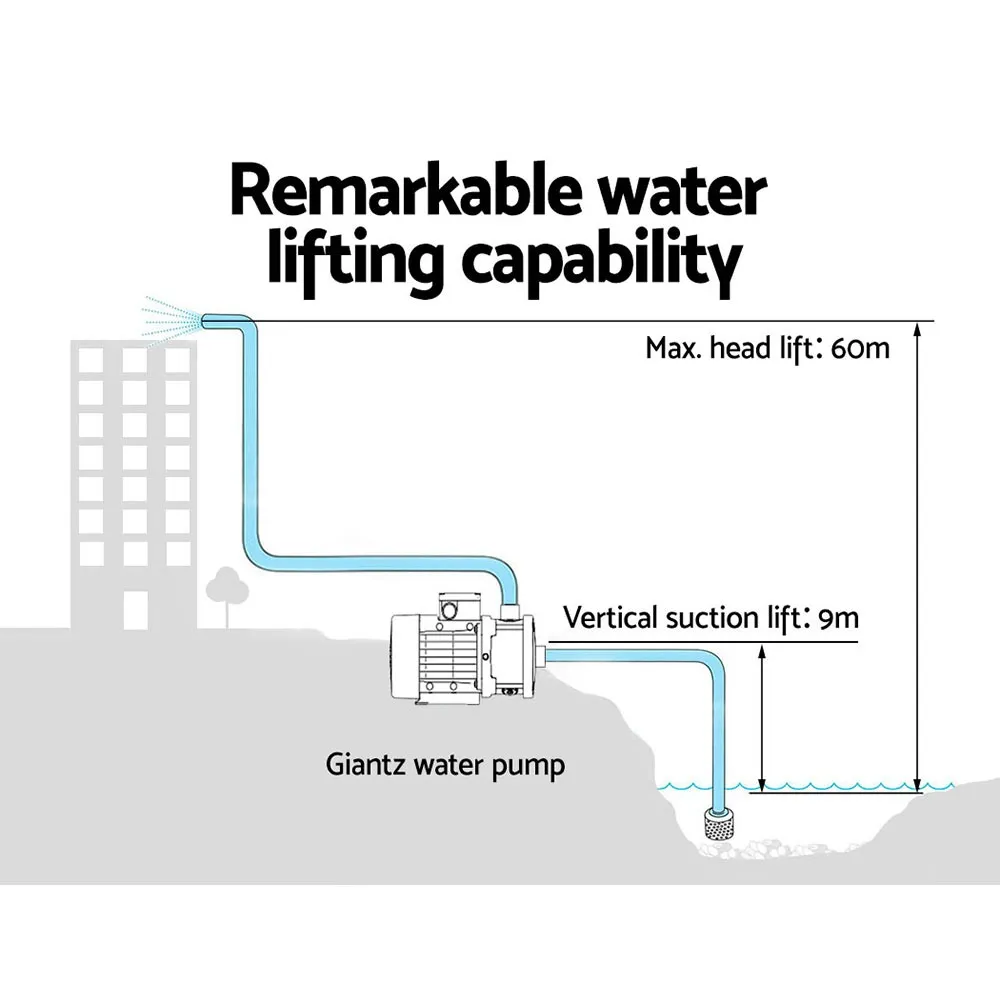

Pumping out at a rate of Max. 100L/min with a Max 50m head, this 5 stage water pump can send water up to two stories high effortlessly. Control the pressure with the fully automatic controller and monitor it at a glance on the pressure gauge.

Power to the pump is as simple as plugging it straight into any Australian standard socket. Whether you use the 5 stage water pump as a permanent installation or on an ad hoc basis, you can be assured of dependable and reliable water supply in more ways than one. Not sure if it suits your setup? Try our pump calculator.

Important Warning – Prohibited Uses

This pump is NOT designed for heavy-duty industrial, commercial, or hydraulic applications. STRICTLY PROHIBITED for use with elevator systems, industrial machinery, or as a power unit for any equipment beyond its capacity. Misuse will void the warranty and may cause product failure.

Operating Scope & Limitations

• Home garden watering and irrigation
• Transferring water from rainwater tanks or wells
• Boosting water pressure in domestic pipelines
• Circulating water in ponds or small fountains

Absolutely not suitable for powering hydraulic elevator systems, heavy machinery, or in any continuous high-load operation. Ensure the electrical supply matches the pump’s requirement.

Key Features of the 5 Stage Water Pump

• Powerful self-priming multi-stage pump
• Garden irrigation, farm irrigation and home water supply
• 100% duty cycle – designed for continuous operation
• Rust-resistant stainless steel pump body with cast iron ends

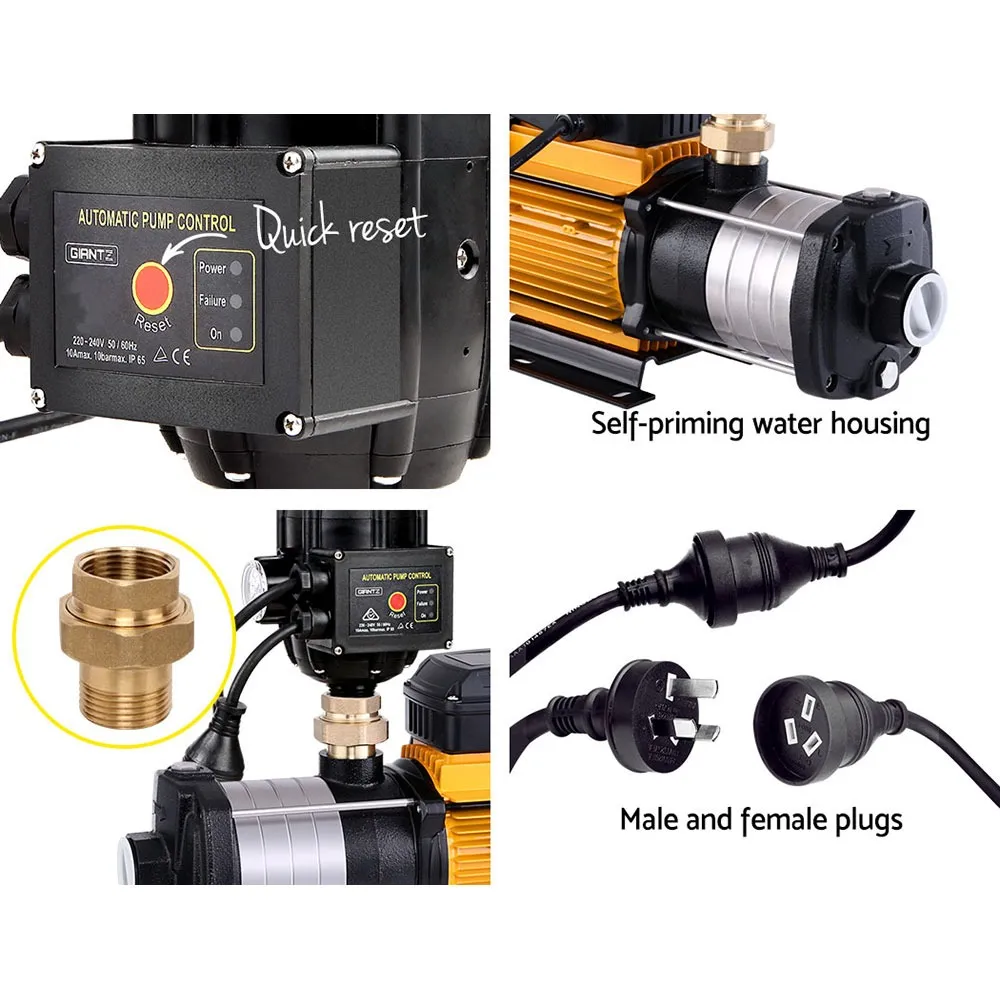

• Fully automatic operation on/off controller
• Max Huge 50m head
• Anti-corrosive alloy motor housing, ceramic and carbon seals
• Built-in thermal protection
• Efficient cooling system

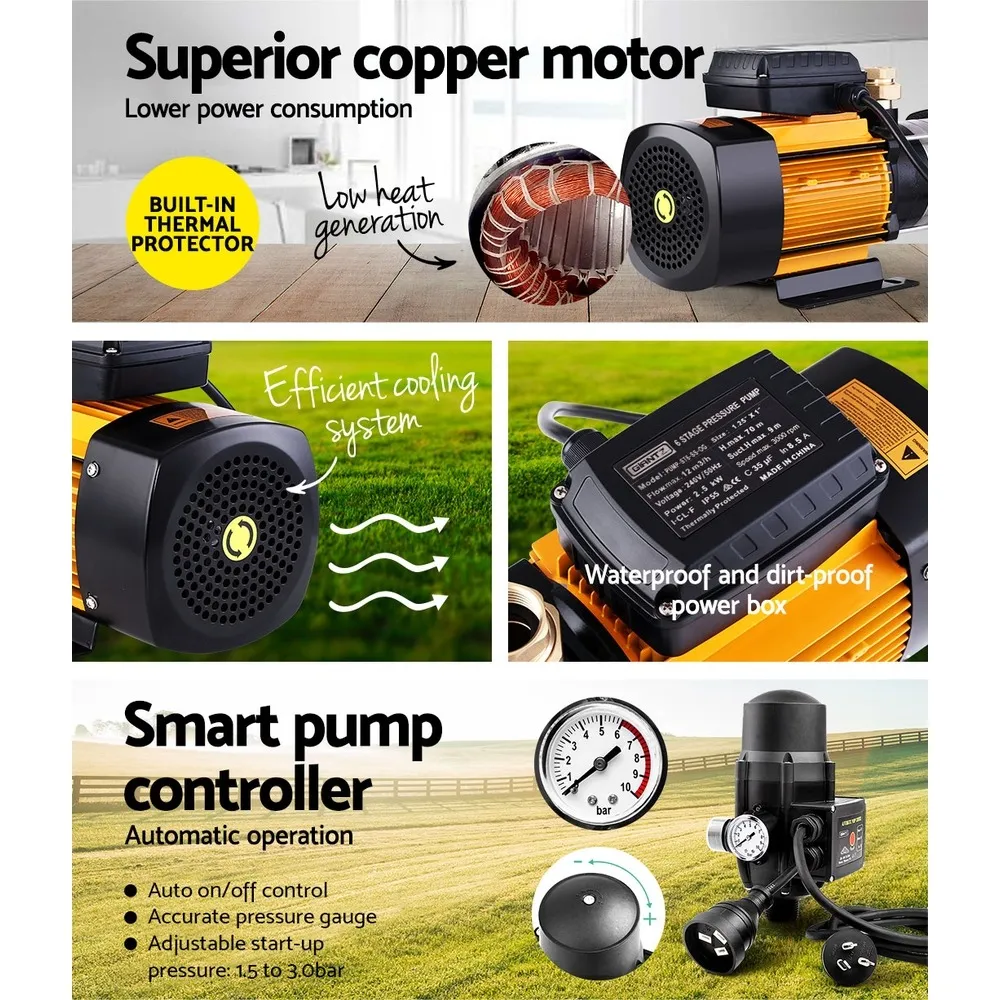

• Highly conductive copper motor
• Corrosion-resistant brass connector
• Leak proof rubber ring
• Easy connecting plug and cable
• Fully automatic pressure controller
• Adjustable start-up pressure
• Australian standard cable and plug

5 Stage Water Pump Specifications

Pump

• Max Input Power: 2000W
• Rated Input Power: 1000W
• Plug and cord: SAA 250V/10A x 0.3m
• Max pump flow: 6,000L/h (100L/min)
• Max head: 50m
• Duty cycle: Continuous

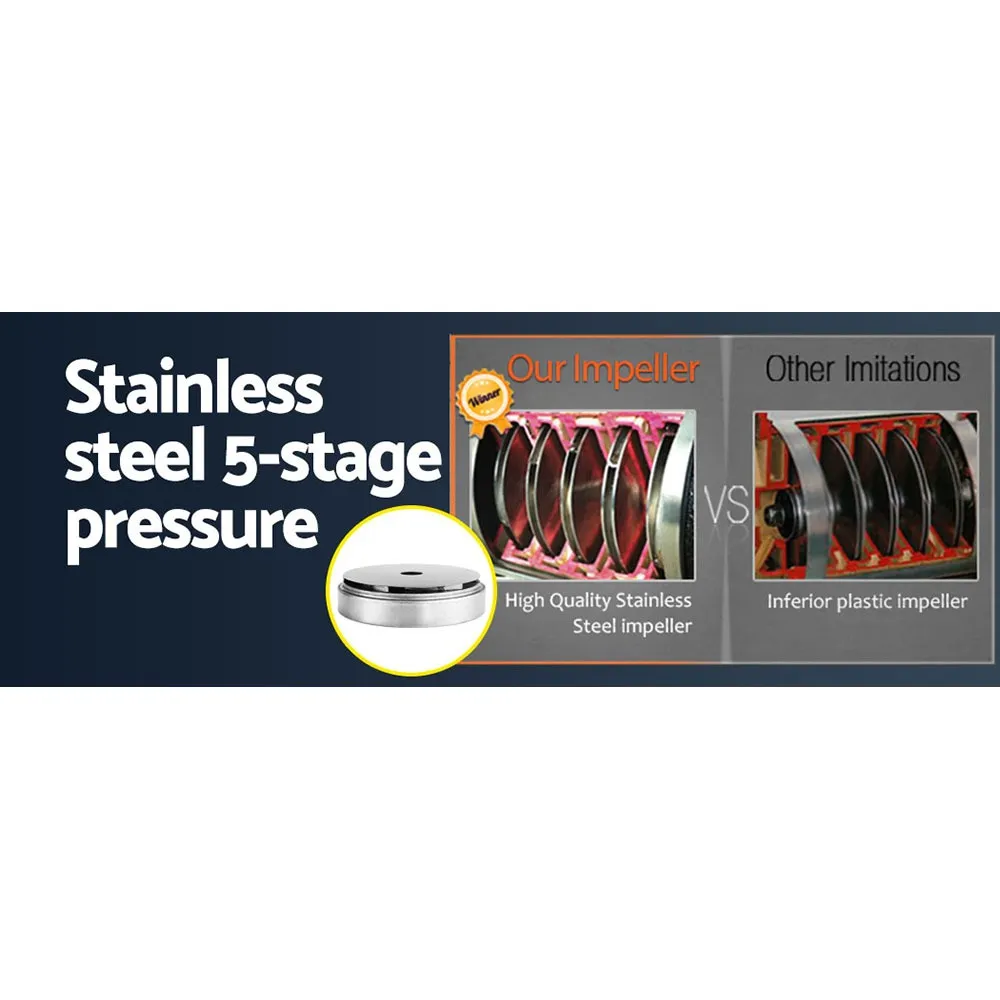

• Impeller: Stainless steel
• Pump body: Stainless steel
• Motor shaft: Stainless steel
• Inlet diameter: 1.25” (30mm)
• Outlet diameter: 1” (25mm)
• Brass connector: 1”
• Protection class: IP54
• Insulation class: B (130℃)
• Max ambient temperature: 40℃
• Max liquid temperature: 60℃

Controller

• Voltage: 220/240V
• Frequency: 50/60Hz
• Maximum current: 10A
• Maximum water temperature: 60℃
• Starting pressure: 1.5-3bar
• Maximum pressure for use: 10bar
• Protection grade: IP65
• Inlet and outlet size: 1” (25mm)
• Dimensions: 22cm x 15cm x 15cm
• Weight: 1.5kg

Package Contents

• Giantz 5-stage Water Pump x 1
• Pump Controller x 1
• User manual x 1

Warranty & Accessories

Your 5 stage water pump comes with a 1 year warranty. See our returns and warranty page for details. Need hoses or fittings? Shop our water pump accessories.
