Bore Water Pump 3HP Submersible Deep Stainless Steel 240V 210m Head

The Protege submersible pump gives you the best flow rate of any bore water pump, producing an awesome 83L/min at 120 metres’ depth. And if you need to go really deep, its 28 impellers will still be producing 17L/min at a dizzying depth of 195 metres.

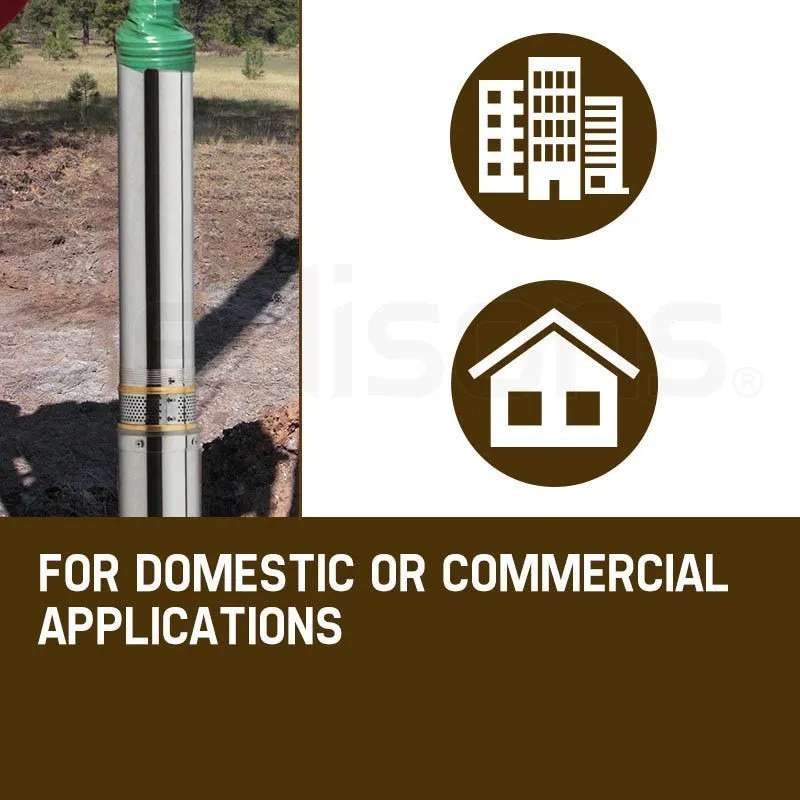

What’s more, featuring housing in 304-grade stainless steel as well as inlet and outlets in brass, it’s truly built to last. So, whether you need it for domestic or commercial applications, get pumped about your savings and order your Protege today!

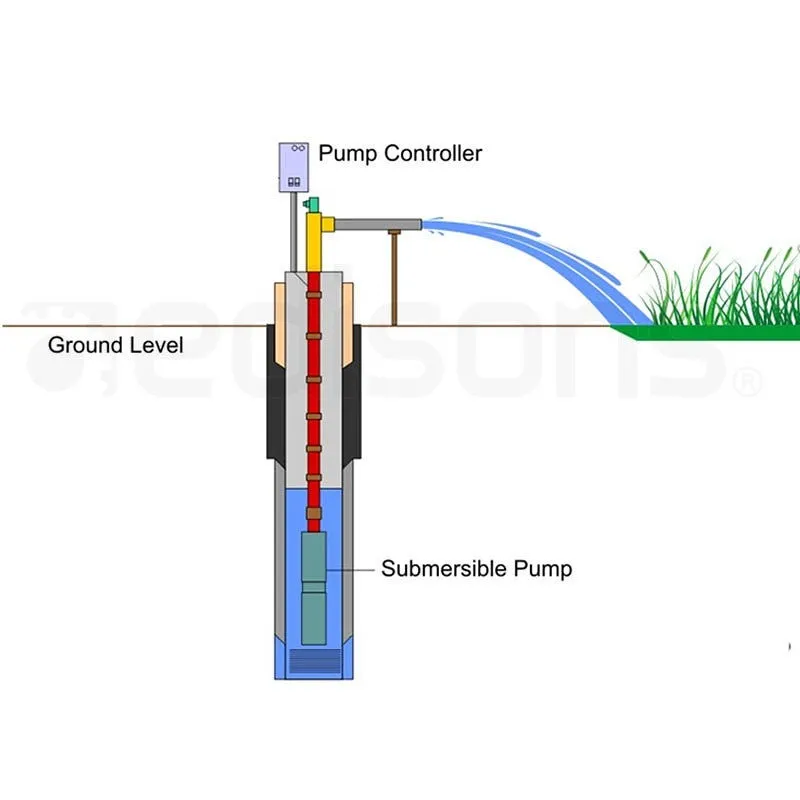

In parts of Australia, it might be hard to believe that water is everywhere. But with your powerful 3HP Protege bore water pump, you’re equipped to find it. Whether the water is 5 or 195 metres below ground, the Protege will bring it up for you.

Of course, if you’re lucky enough to have surface water available, you can also mount your Protege horizontally. Only requiring a borehole of 100mm, the Protege bore water pump minimises the work needed to reach the water.

And once you get there, you’re set. Manufactured from 304-grade stainless steel and brass, your Protege is a durable workhorse that will keep you in flow for years to come.

Bore Water Pump Key Features

• Best flow rate of any bore water pump

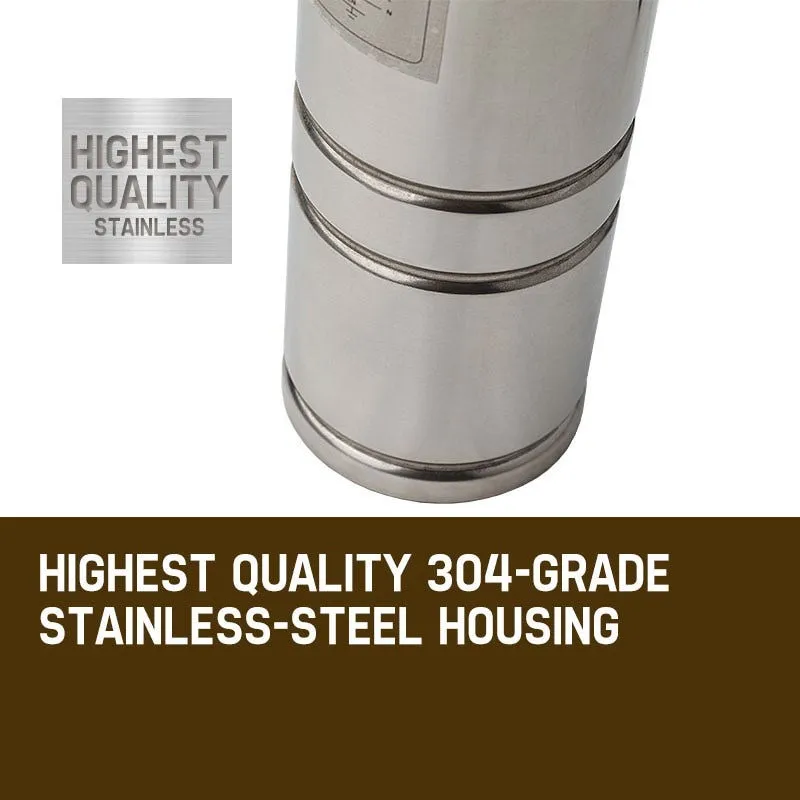

• Highest quality 304-grade stainless-steel housing
• 83L/min at a depth of 120 metres – 17L/min at 195 metres
• Brass inlet and outlets
• 28 impellers
• Can be mounted horizontally as well as vertically
• 210m max head

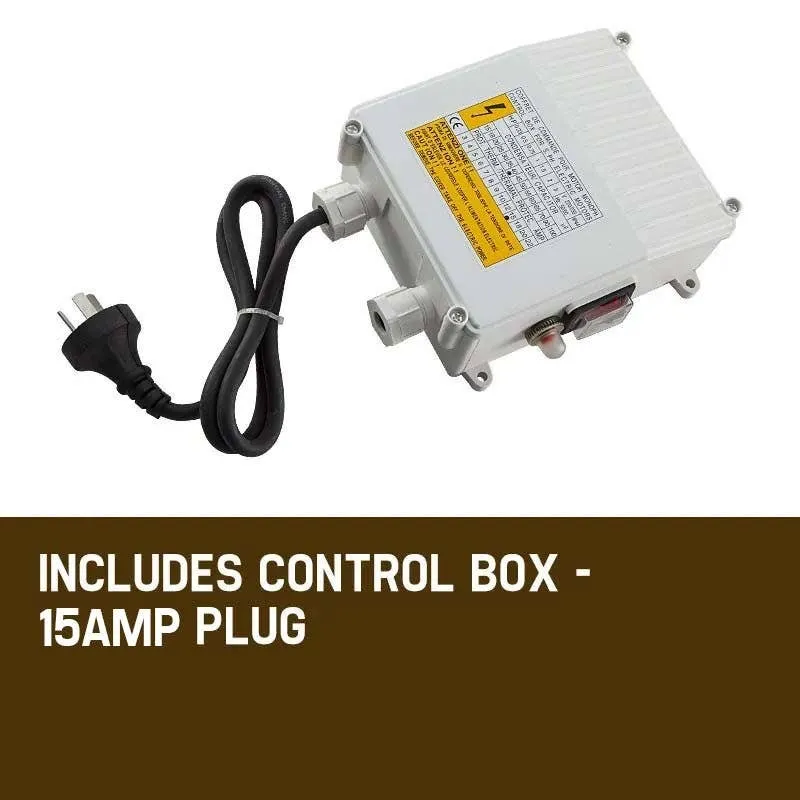

• Includes Pre-wired IP rated controller

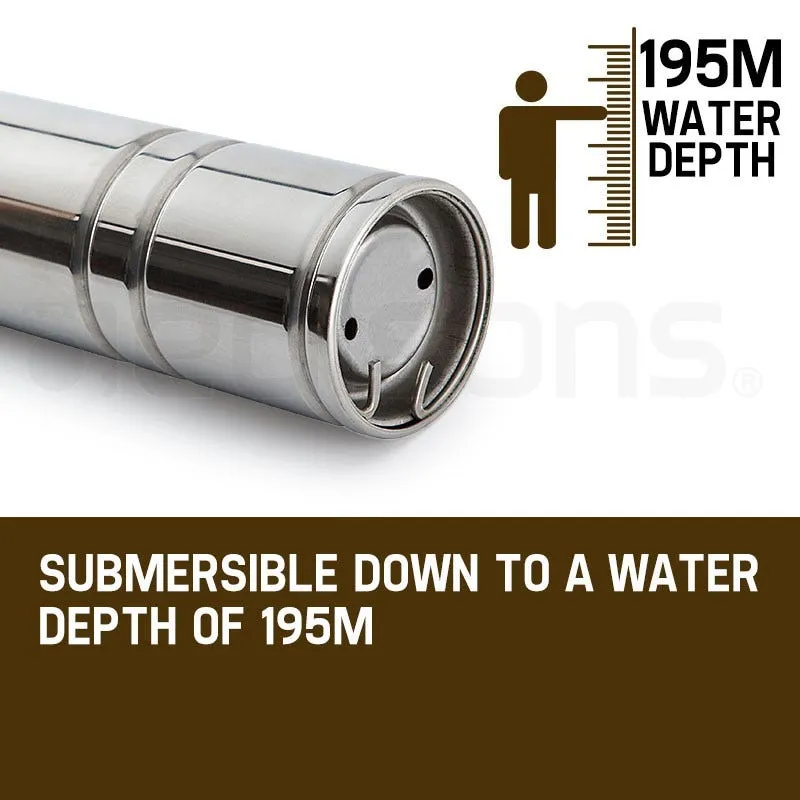

• Submersible down to a water depth of 195m
• 12-month Australian warranty

Bore Water Pump Specifications

Pump

• Brand: Protege
• Model: BW66

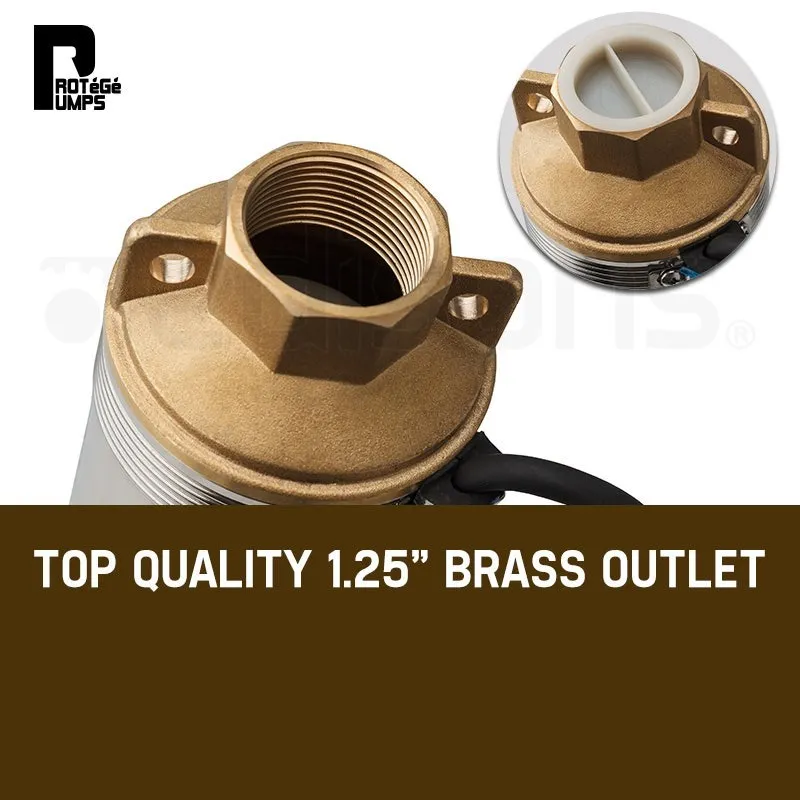

• Brass Outlet: 1.25″
• Water PH: 6.5 – 8.5
• Max Ambient Temp: 70 C

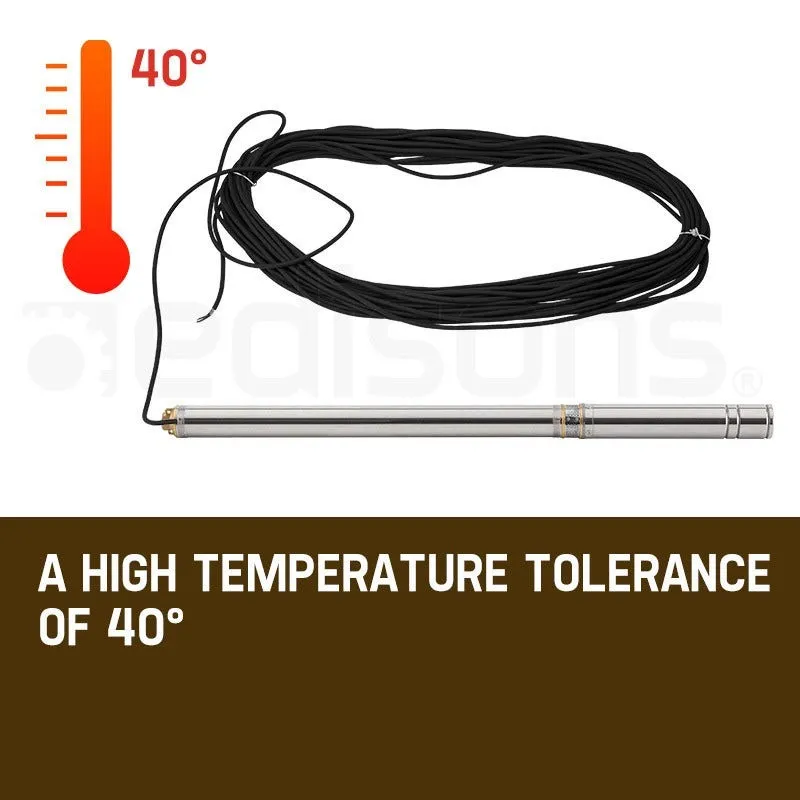

• Max Fluid Temp: 40 C

Motor and Electrical

• Motor: 3.0HP / 2.2KW
• Phase: Single
• Voltage: 240V / 50Hz 15A
• Rev: 2850 rpm
• Max Starts Per Hour: 30
• Overload Trip Time: <10sec
• Insulation Class: I
• Plug: 15 amp
• Protection Class: IP68
• Cable Length: 30m
• Power Plug: Australian Standard

Flow Rates

• 17L/Min @ 195m
• 25L/Min @ 189m
• 33L/Min @ 180m
• 42L/Min @ 168m
• 50L/Min @ 150m
• 67L/Min @ 135m
• 83L/Min @ 120m

Size and Weight

• Carton Dimensions (L x W x H): 176 x 12 x 19cm
• Carton Weight: 30kg

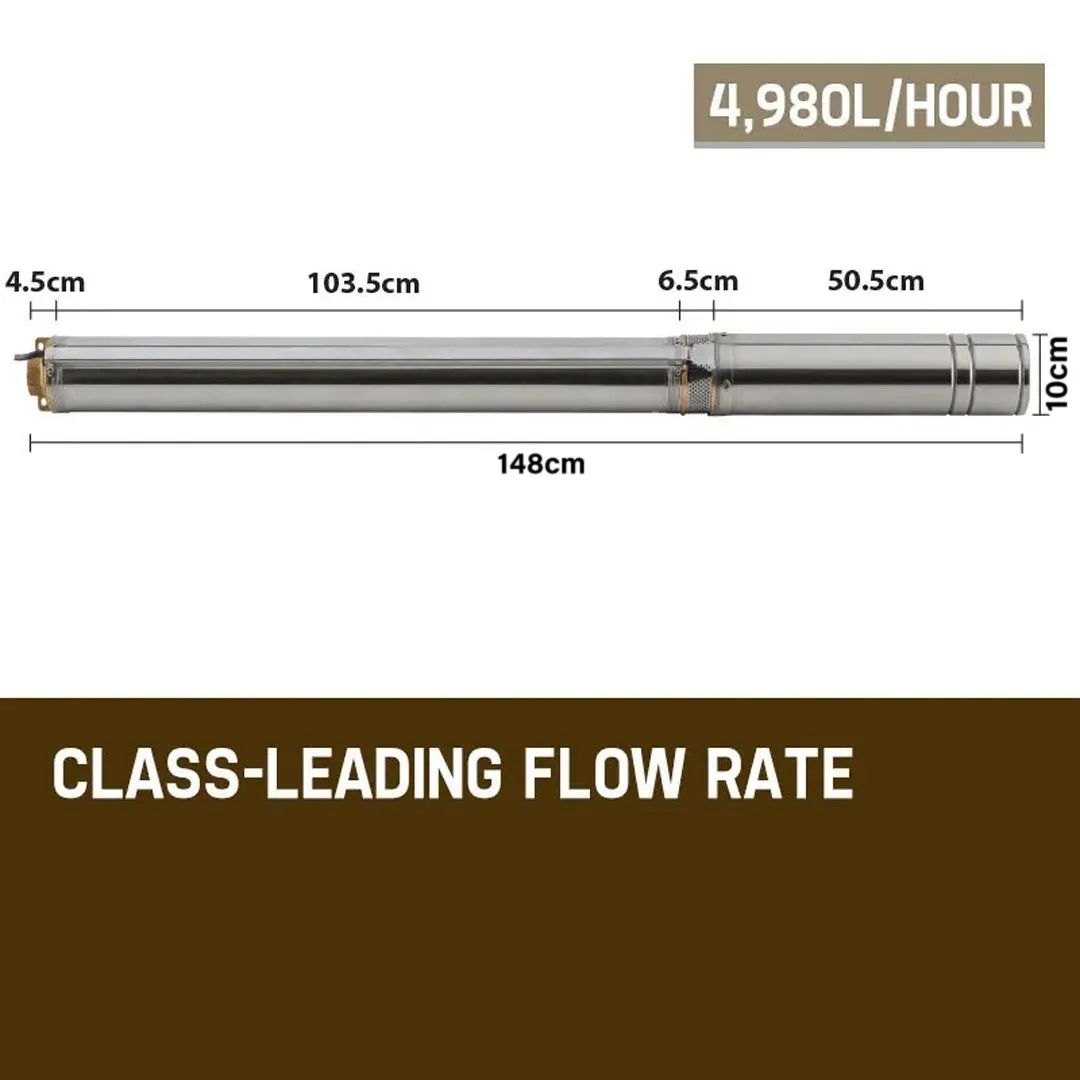

• Product Dimensions (W x L): 10cm X 148cm
• Product Weight: 28kg

Package Contents

• 1 x Protege BW66 3HP Submersible Bore Water Pump
• 1 x Pre-wired IP rated controller
• 1 x User manual

Warranty

This product comes with a 12-month warranty.
