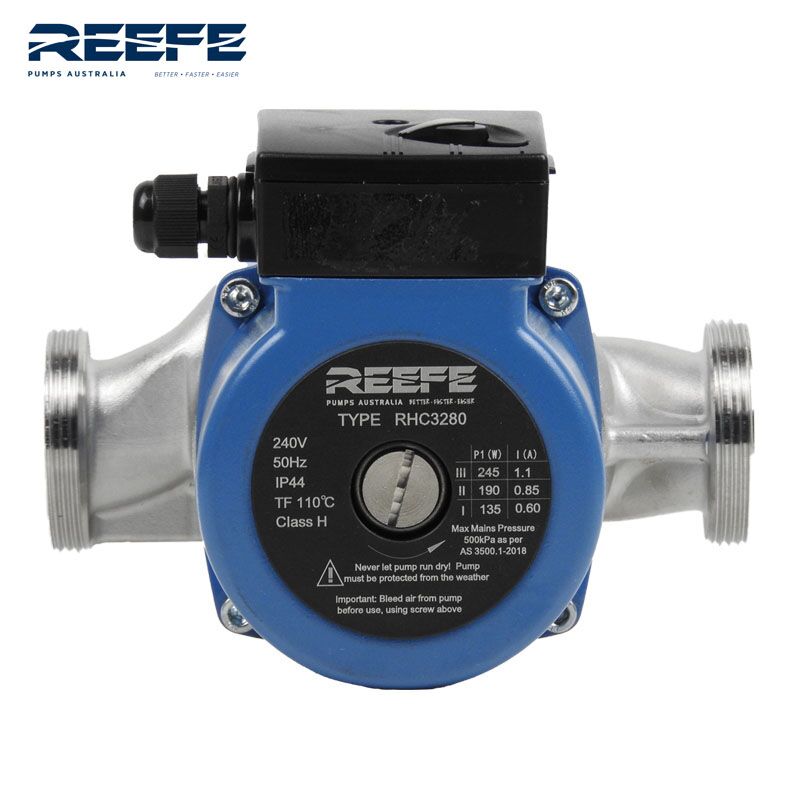

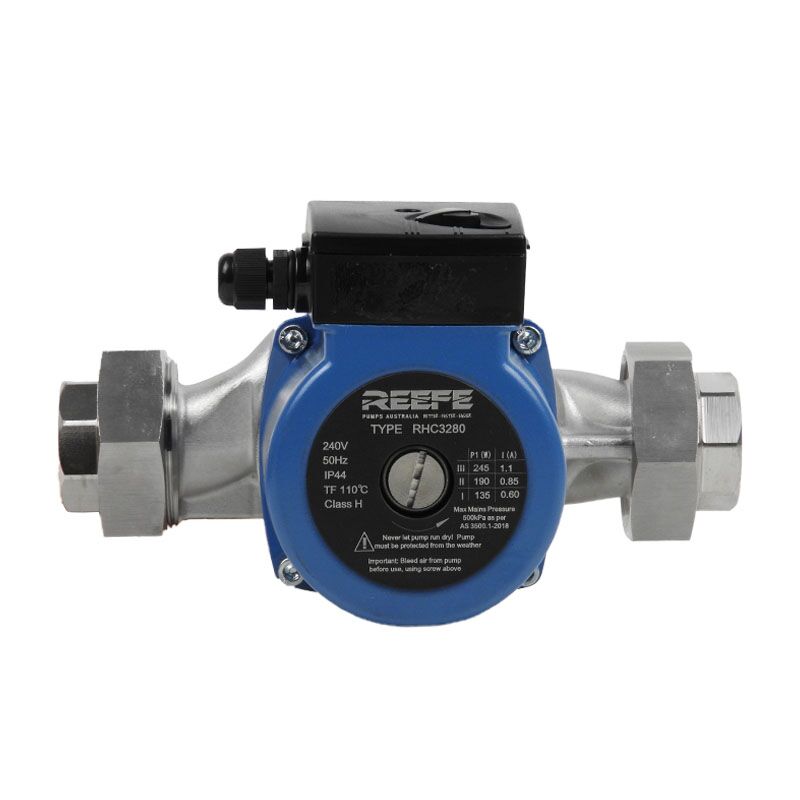

Hot Water Circulator Pump – Great Quality Reefe Brand, 166 L/min Flow, 8.2m Head

This 3 speed circulating pump is ideal for ring main applications in domestic or commercial systems. Quiet , reliable and low power consumption are just some of the great features of this pump. It comes standard with barrel union.



Specifications
CODE	18828	MODEL	RHC3280
SPEED	AMPS	WATTS	FLOW	HEAD
3	1.1	245	166 L/min	8.2m
2	0.85	190	77 L/min	7m
1	0.6	135	33 L/min	5m
SIZE (L) BARE PUMP PORT TO PORT		180mm	PORT TO PORT (MM)	50MBSP
SIZE (L) with BARREL UNION		230mm	UNION (MM)	32MBSP



Features & Benefits

• In line pump casing
• 3 speed variable adjustment
• Low power consumption
• Reliable, maintenance free
• Max operating pressure 10 bar
• Thermal overload
• Liquid temperature 2°C to 110°C
• Max ambient temperature 40°C
• Options for 32 FBSP or 50mm MBSP connections
• Certified to AS/NZS4020 for use with potable water

Construction

• GR 304 Stainless Steel Pump Casing
• Ceramic motor shaft
• PES composite impellers
• Ceramic bearing & EPDM seals

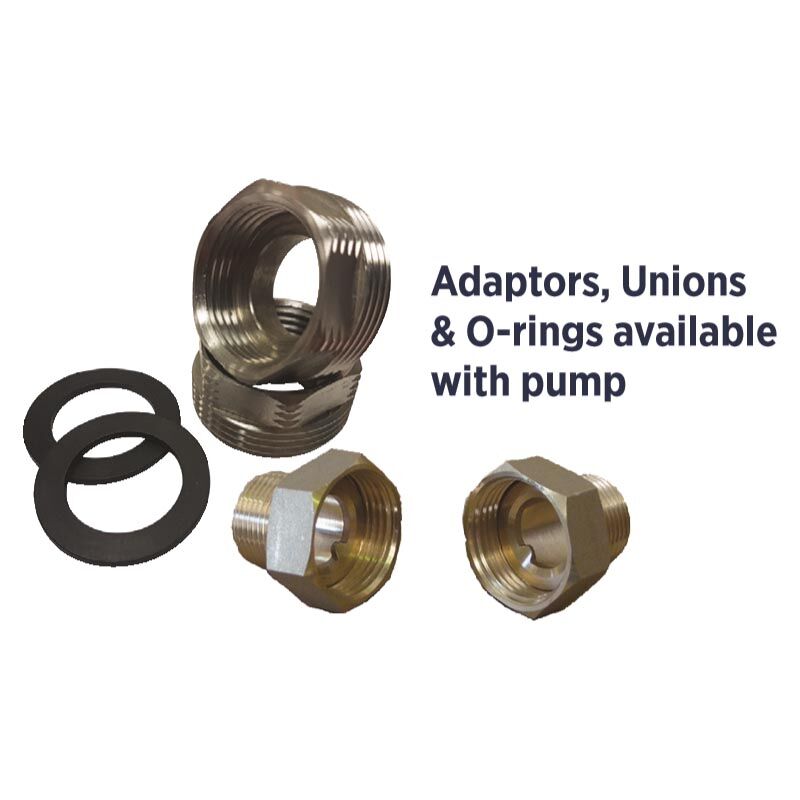

• Stainless steel barrel unions supplied with pump
• Ingress Protection IP44
• Insulation Class H

Applications

• Hot water circulating
• Commercial or domestic hot water systems
• Air-conditioning cooling systems
• Solar hot water systems
• Hotels & motels
