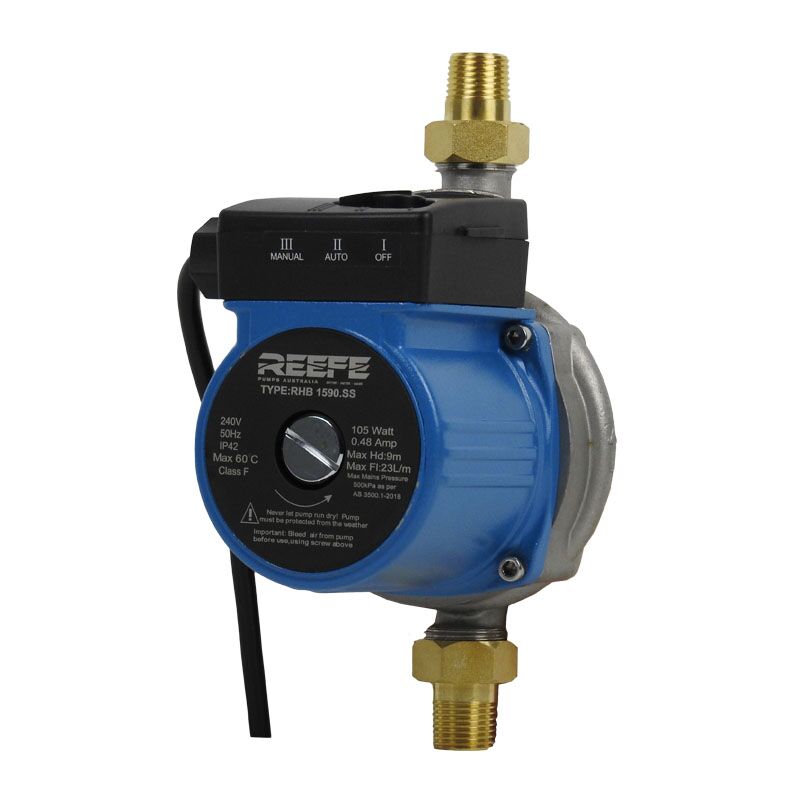

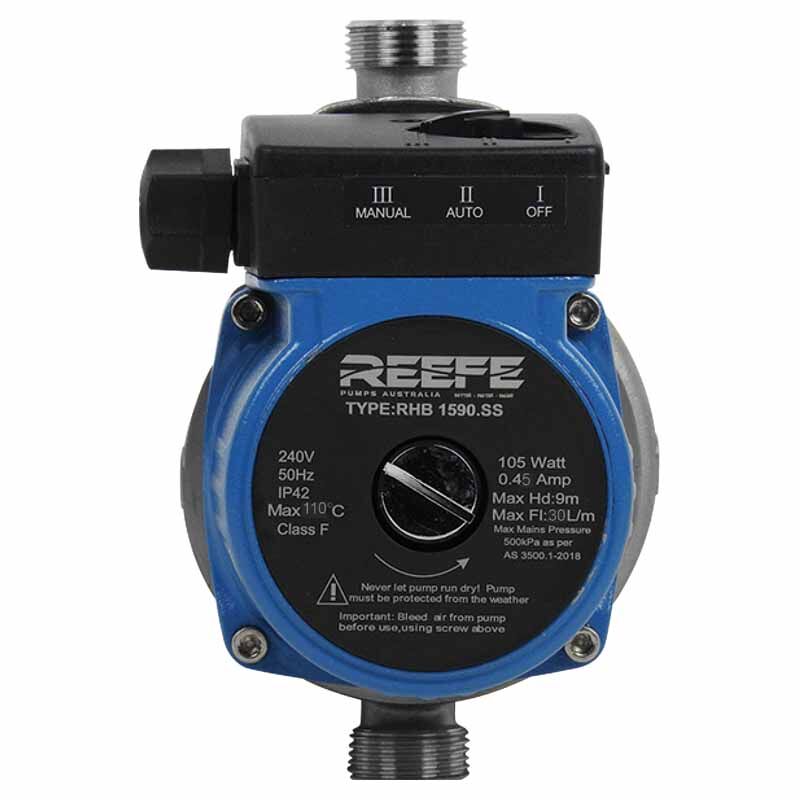

Reefe RHB1590.SS Hot Water Booster Pump

Reefe RHB1590.SS Hot Water Booster Pump

Specifically engineered for domestic potable cold and hot water applications, this pump provides the extra pressure needed for a satisfying and consistent flow from your showers, taps, and similar outlets.

The RHB1590 is equipped with an inbuilt flow switch that automatically starts or stops the pump when a tap is turned on or off, offering convenience and energy efficiency. With its compact design and stainless steel construction, it’s perfect for residential installations.



Specification	Details
Model	RHB1590.SS
Product Code	18811
Amps	0.48 A
Power (P1)	1.05 W
Maximum Flow Rate	30 L/min
Maximum Head	9 m
Liquid Temperature Range	+2°C to +110°C
Maximum Mains Pressure	500 kPa (as per AS 3500.1-2018)
Pump Size (Bare)	160 mm
Pump Size (with Barrel Union)	215 mm
Ports	20MBSP

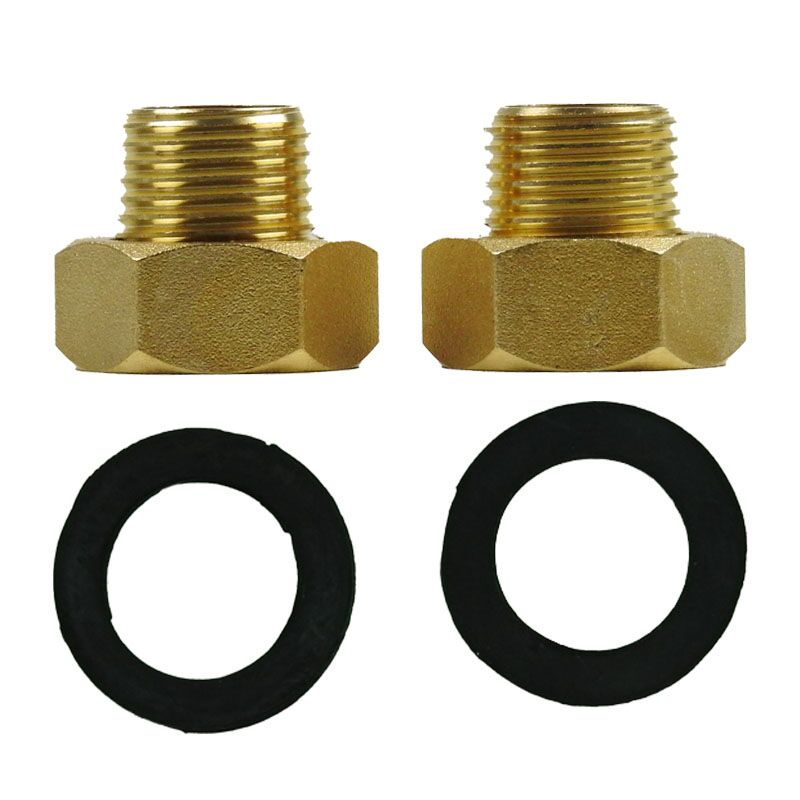

Union Size	15MBSP

Features & Benefits

• In-line pump casing for easy installation
• Options for 20mm or 13mm BSP connections
• Automatic or manual operation
• In-built flow switch
• Low power consumption
• Reliable and maintenance-free
• Quiet operation
• Certified to AS/NZS 4020 for use with potable water
• Maximum mains pressure: 500 kPa (as per AS 3500.1-2018)
• Liquid temperature range: 2°C to 110°C
• Ambient temperature: up to 40°C

Construction

• Stainless steel pump casing
• Ceramic motor shaft
• PES composite impellers
• Ceramic bearings
• EPDM seals
• Ingress protection: IP42
• Insulation class: F

Applications

• Hot water boosting
• Commercial or domestic hot water systems
• Air-conditioning cooling systems
• Solar hot water systems
• Hotels & motels
